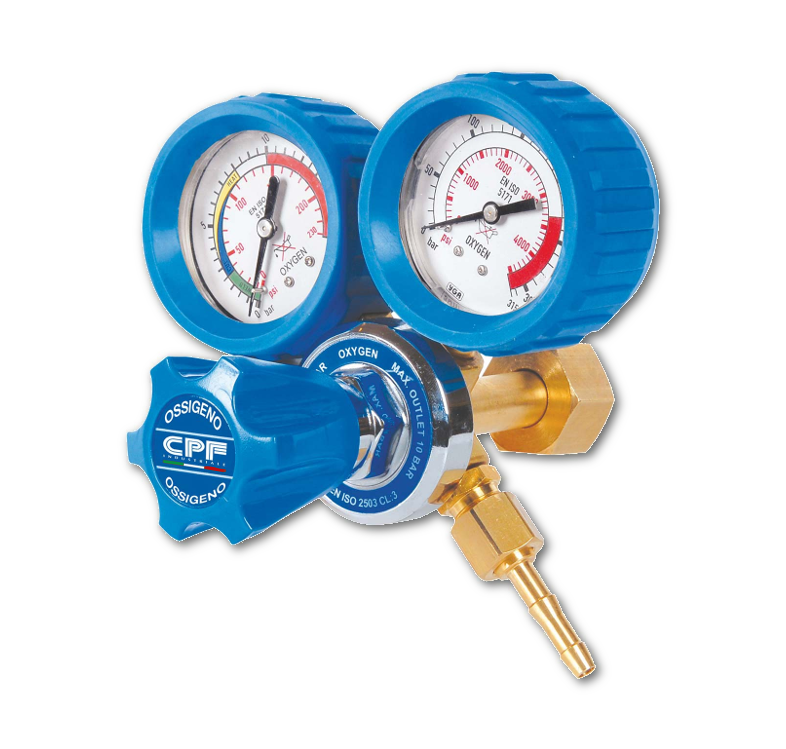

    Pressure Regulators for rear connection cylinders (230-10Bar)

    Single-stage Ecoreg pressure regulator with monoblock brass body and high-sealing membrane: ensures stable outlet pressure even with input variations, offering high durability and safety. Ideal for professional applications such… See more...
    Request informations
    Standard Specifications
    Construction regulations: EN ISO 2503
    Input Pressure: 230 Bar Max
    Output pressure: Adjustable 0/10 Bar
    Flow: See Table
    Usage temperature: -15 ° +60 °
    Outlet Connection: G.3/8"
    Hose holder diameter 6,3 mm
    Manometers ISO 5171 diam. 63 mm class 2.5
    HP Pressure Gauge 0/315 bar
    LP Pressure Gauge 0/15 bar
    Brass Body -CW617N-UNI EN 12165
    High Pressure Valve Valve PVDF Valve
    Zama 5 Bell
    Diaphragm NBR diam.50
    Stainless Steel Filter placed inside the Reducer
    Nb. We recommend the use of the Oxygen Safety Valve
    Options
    On request connection in accordance with NF/BS/DIN
