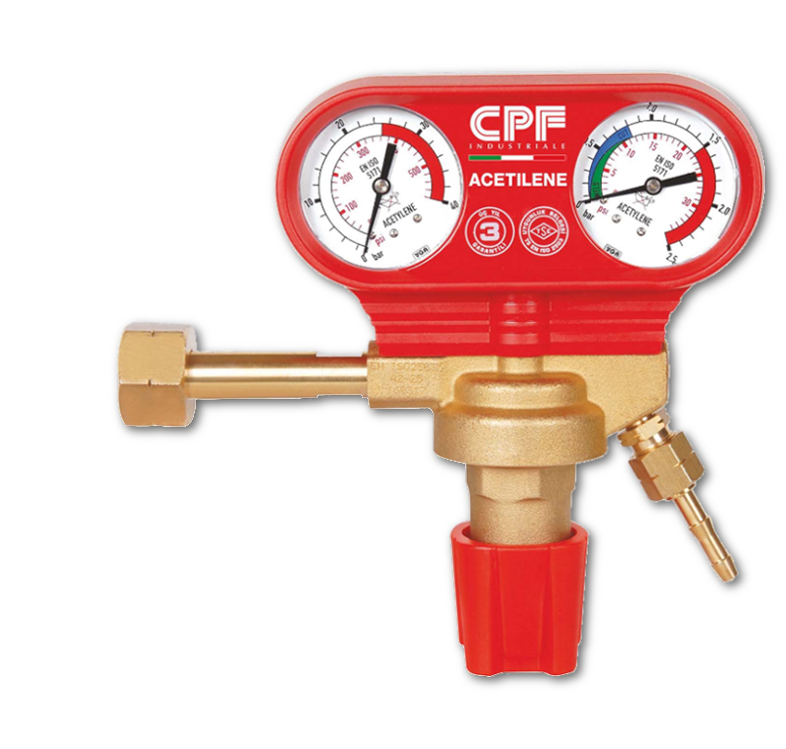

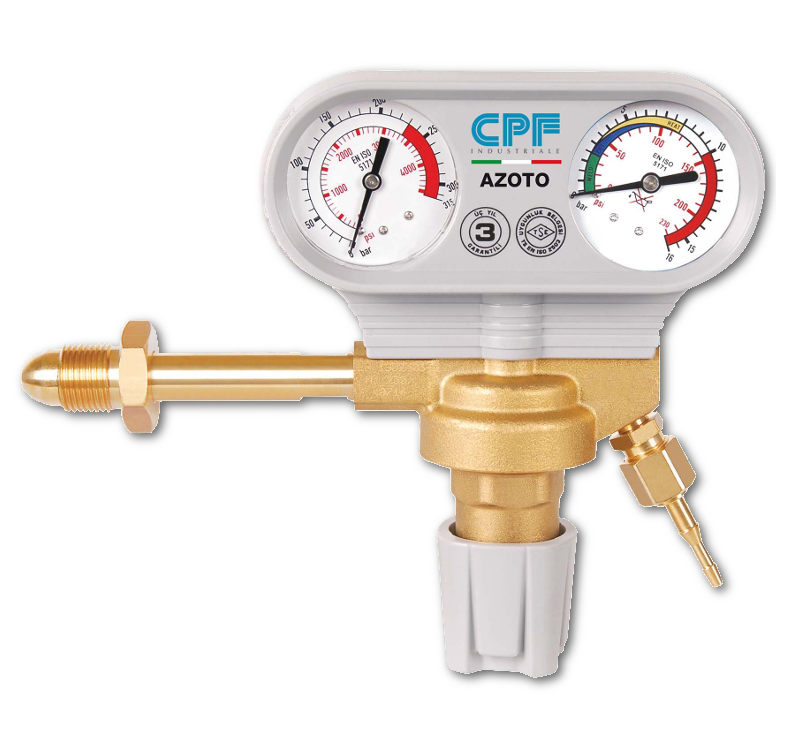

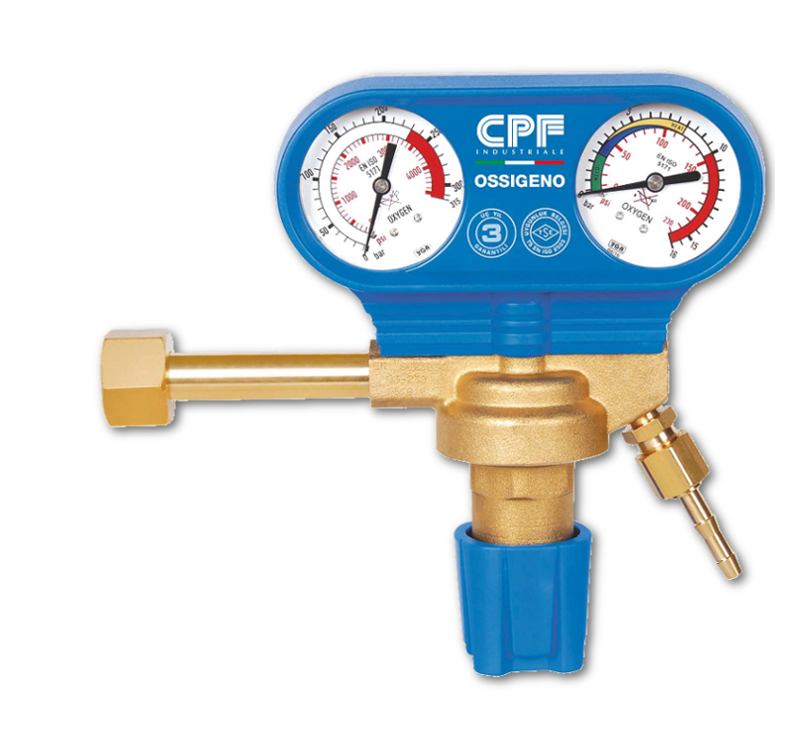

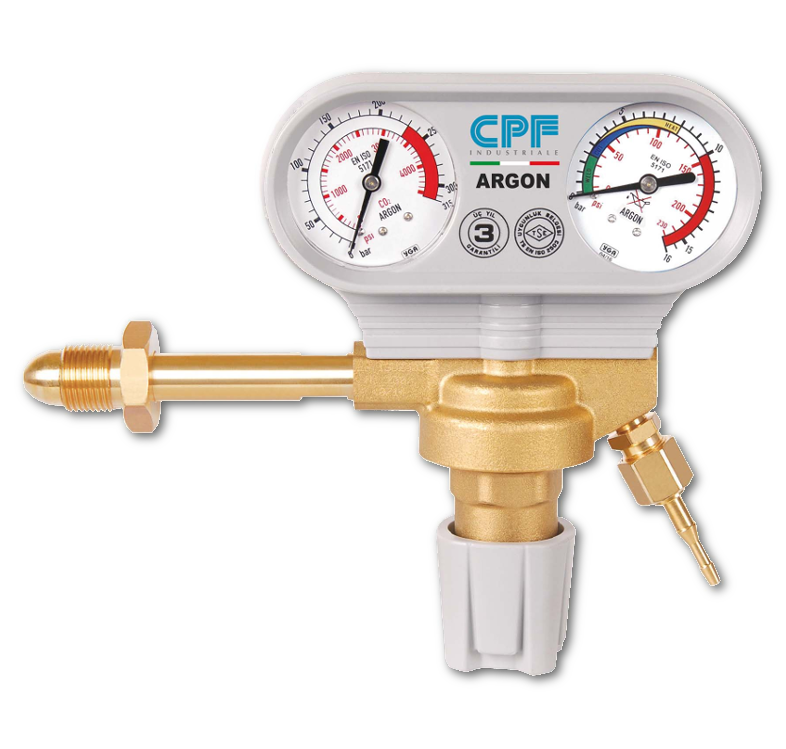

    Pressure regulators max outlet pressure 10 bar - Proreg

    Single-stage Proreg pressure regulator with monoblock brass body and high-sealing membrane: ensures stable outlet pressure even with input variations, offering high durability and safety. Ideal for professional applications such… See more...
    Request informations
    Standard Specifications
    Construction regulations: EN ISO 2503
    Valve connection standard: UNI
    Input Pressure: 230 Bar Max
    Output pressure: Adjustable 0/10 Bar
    Range: See Table
    Usage temperature: -15 ° +60 °
    Hose holder diameter 6,3 mm
    Manometers ISO 5171 diam. 63 mm class 2.5
    HP Pressure Gauge 0/315 bar
    LP Pressure Gauge 0/15 bar
    Brass Body -CW617N-UNI EN 12165
    High Pressure Valve Valve PVDF Valve
    Brass Bell
    Diaphragm NBR diam.50
    Stainless Steel Filter placed inside the Reducer
    Nb. We recommend the use of the Oxygen and Combustion Gas Safety Valve
    Options
    Available gas : O2, N2, Ar, H2, Air
    Outlet connection:
    • Oxygene/Nitrogen : G.3/8"
    • Argon : G.1/4"
    • Hydrogen : G.3/8" Left
    Available on request NF/DIN
