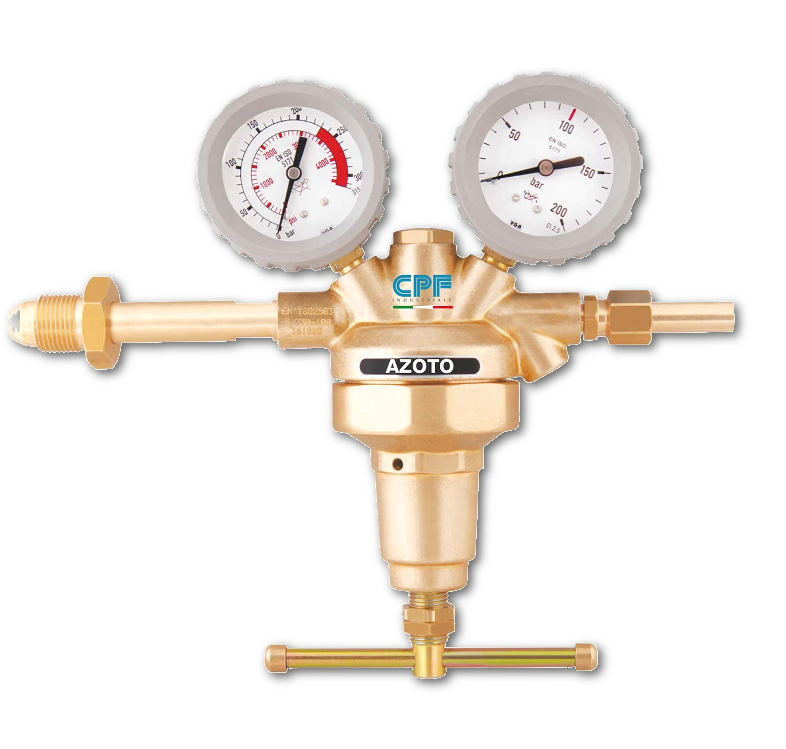

Pressure regulator with output pressure 100 and 150Bar - Maxireg
ingle-stage high-pressure regulators (100–150 bar), designed for extreme applications where high performance and precise control are essential. Ideal in environments where operating pressure is a critical factor, they ensure reli… See more...
ingle-stage high-pressure regulators (100–150 bar), designed for extreme applications where high performance and precise control are essential. Ideal in environments where operating pressure is a critical factor, they ensure reliability, safety, and stable flow even under heavy loads.
Main applications:
- High-pressure test benches
- Intensive hydraulic or pneumatic tests
- Gas cylinder filling (e.g., refill stations)
- Research facilities or advanced laboratories
- Chemical and petrochemical industry
- Thermal, laser, or plasma treatments requiring constant high pressure
- Military or aerospace applications
Standard Specifications
Construction regulations: EN ISO 2503
Input Pressure: 230 Bar Max
Flow: See Table
Usage temperature: -15 ° + 60 °
Outlet Connection: G.3/8"
Hose holder diameter 6,3 mm
Manometers ISO 5171 diam. 63 mm class 2.5
HP Pressure Gauge 0/315 bar
LP Pressure Gauge 0/200bar
Brass Body -CW617N-UNI EN 12165
High Pressure Valve Valve PVDF Valve
Brass Bell
Piston: Brass
Bronze Filter placed inside the inlet
Nb. We recommend the use of the safety valve for Oxygen
Options
Gas: O2-N2
Output pressure: Adjustable 0/100 Bar, 0/150 Bar
