    Pressure regulators with flow-meter Argon and CO2

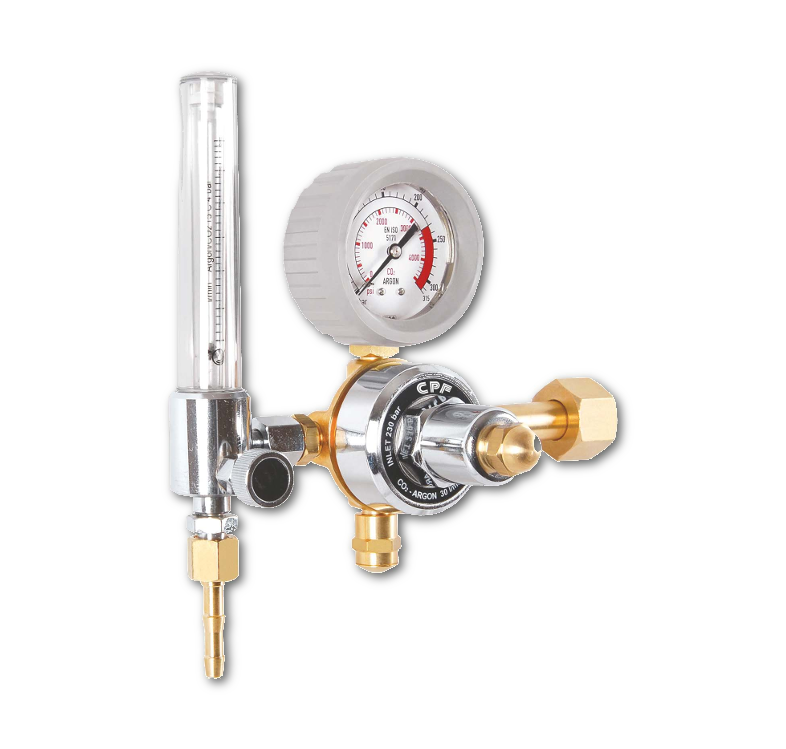

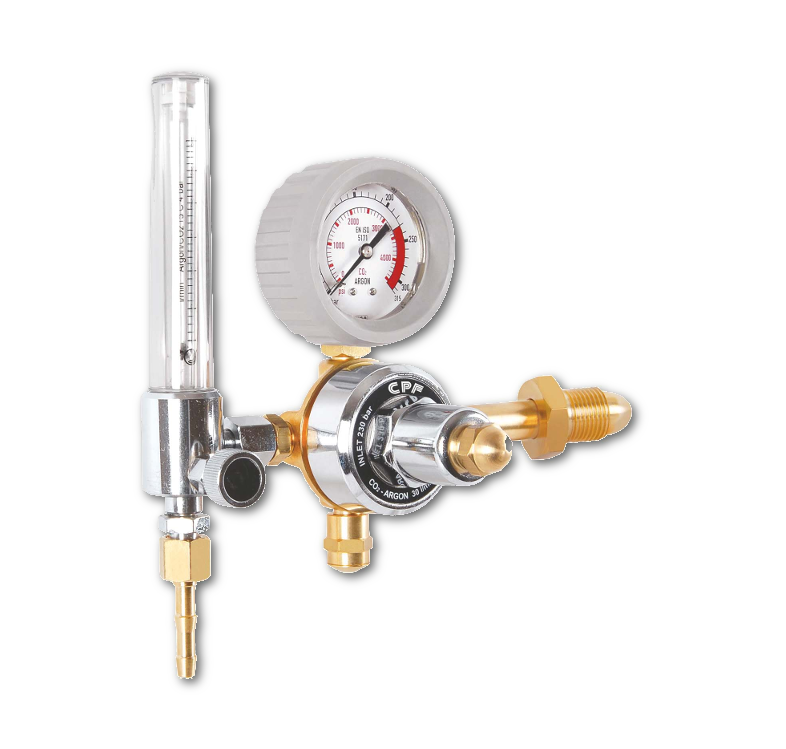

    Single-stage regulator for Argon and CO2 with high-precision glass flowmeter, ideal for TIG welding or applications requiring accurate visual flow control. The transparent tube with float allows immediate and precise re… See more...
    Request informations
    Standard Specifications
    Construction regulations: EN ISO 2503
    Gas: Argon/mix - CO2
    Input Pressure: 230 Bar Max
    Output pressure: Flowmeter with adjustable spike tap 0/30 LT./Min
    Range: See Table
    Usage temperature: -15 ° + 60 °
    Hose Holder for 6,3 mm
    Manometers ISO 5171 diam. 63 mm class 2.5
    HP Pressure Gauge 0/315 bar
    Flowmeter Graduated Column 0/30 LT./min
    Brass Body -CW617N-UNI EN 12165
    High Pressure Valve Valve PVDF Valve
    Zama 5 Bell
    Diaphragm NBR diam.50
    Stainless Steel Filter placed inside the Reducer
    Options
    Outlet Connection: G.3/8" Argon; G.1/4" CO2
