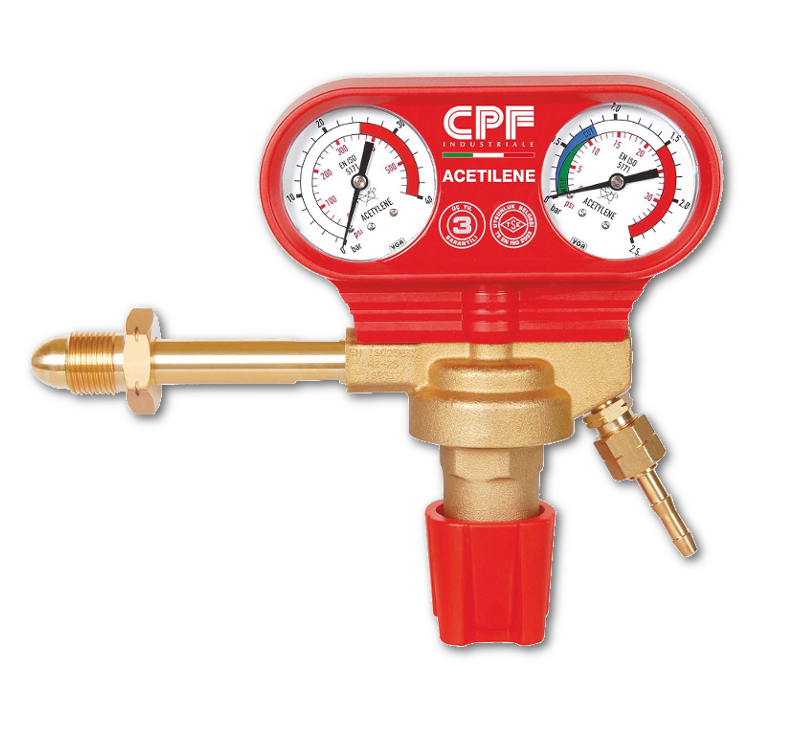

    Pressure regulators for acetylene - Proreg

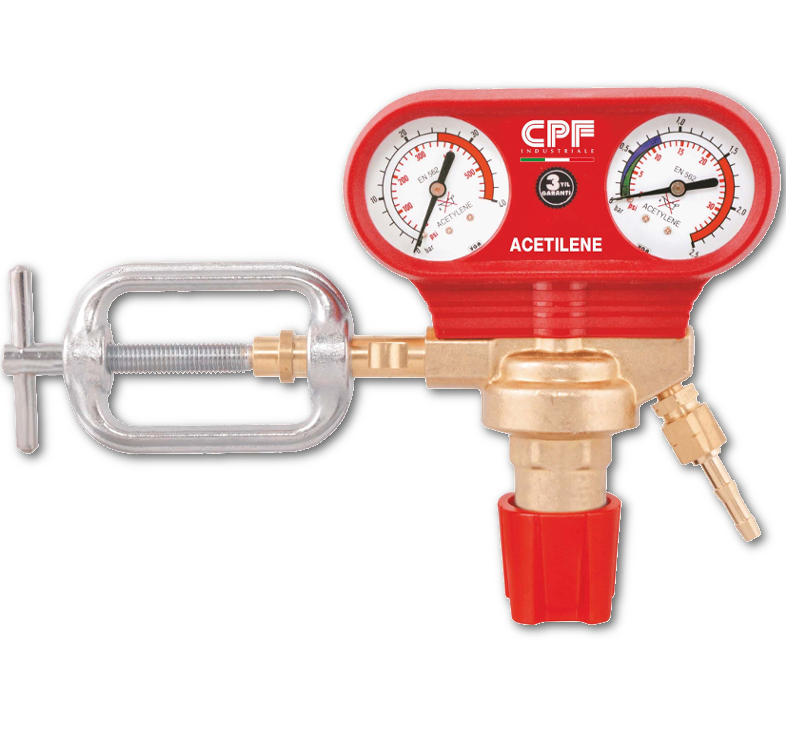

    Single-stage acetylene pressure regulator with vertical adjustment knob, ideal for welding and cutting. Also available with bracket for fixed installation on panels or centralized systems — perfect for stable setups in industrial… See more...
    Request informations
    Standard Specifications
    Contruction regulation EN ISO 2503
    Input Pressure: 25 Bar Max
    Output pressure: Adjustable 0/1,5 Bar
    Flow: See Table
    Usage temperature: -15 ° +60 °
    Outlet connection: G.3/8" Left
    Hose Holder for 6,3 mm
    Manometers ISO 5171 diam. 63 mm class 2.5
    HP Pressure Gauge 0/40 bar
    LP Pressure Gauge 0/2,5 bar
    Brass Body -CW617N-UNI EN 12165
    High Pressure Valve Valve PVDF Valve
    Brass Bell
    Diaphragm EPDM diam.50
    Stainless Steel Filter placed inside the Reducer
    Nb. We recommend the use of the safety valve for Acetylene
    Options
    Available with bracket (valve connection UNI 7S) - Without bracket (valve connection UNI 7F)
    Available on request NF/DIN
