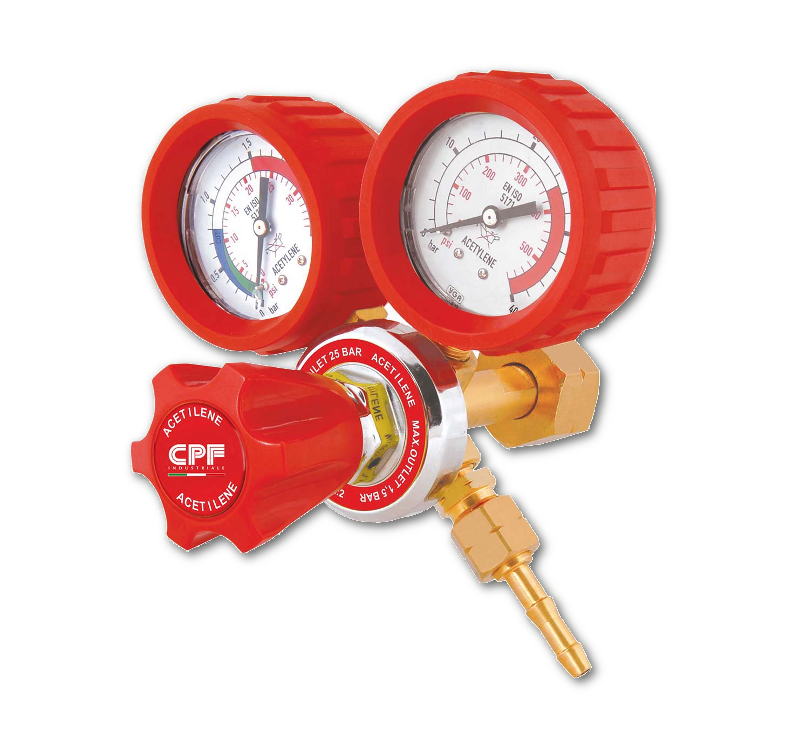

    Pressure Regulators for rear connection cylinders (25-1,5Bar)

    Single-stage acetylene pressure regulator with vertical adjustment knob and rear inlet connection, ideal for welding and cutting. See more...
    Request informations
    Standard Specifications
    Construction regulations: EN ISO 2503
    Input Pressure: 25 Bar Max
    Output pressure: Adjustable 0/1,5 Bar
    Flow: See Table
    Usage temperature: -15 ° +60 °
    Outlet Connection: G.3/8"
    Hose holder diameter 6,3 mm
    Manometers ISO 5171 diam. 63 mm class 2.5
    HP Pressure Gauge 0/40 bar
    LP Pressure Gauge 0/2,5 bar
    Brass Body -CW617N-UNI EN 12165
    High Pressure Valve Valve PVDF Valve
    Zama 5 Bell
    Diaphragm NBR diam.50
    Stainless Steel Filter placed inside the Reducer
    Nb. We recommend the use of the Safety Valve for Combustion Gas
    Options
    On request connection in accordance with NF/BS/DIN
