    Pressure regulators for acetylene and LPG - Starreg

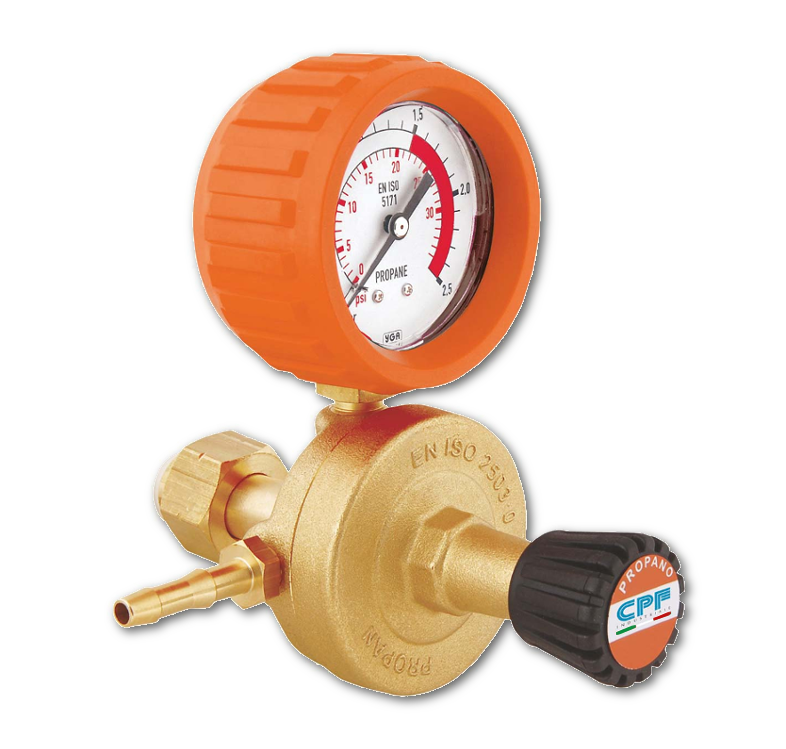

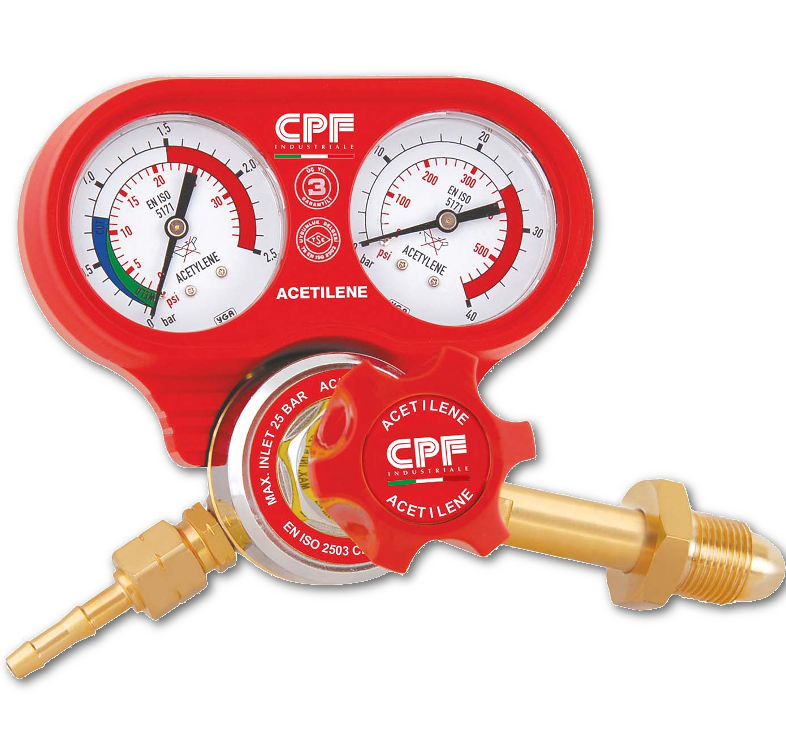

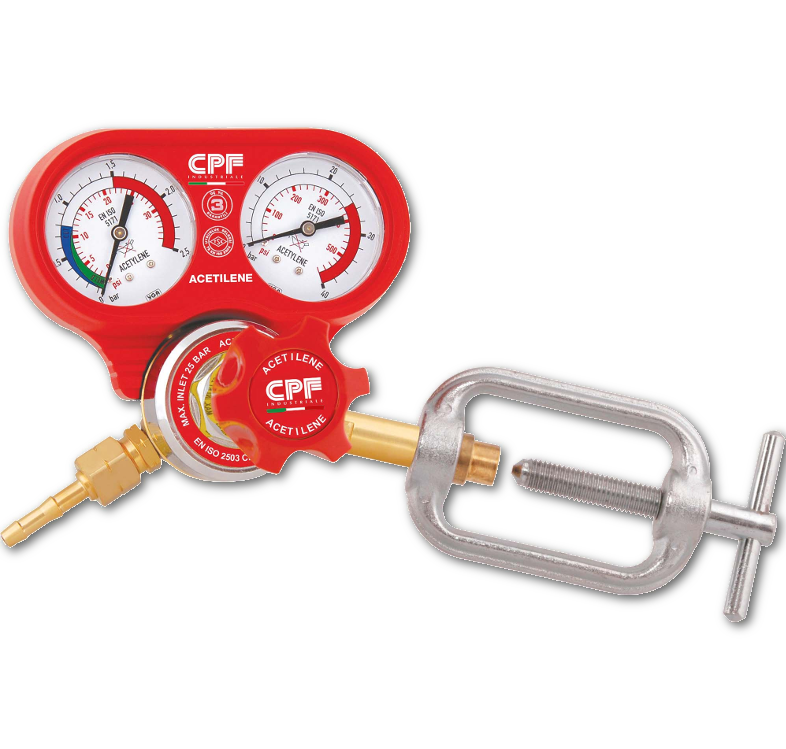

    Single-stage pressure regulator with front adjustment knob and left-side inlet, ideal for welding and cutting. A version with mounting bracket is also available for fixed installation on panels or centralized systems — perfect f… See more...
    Request informations
    Standard Specifications
    Construction regulations: EN ISO 2503
    Input Pressure: 25 Bar Max
    Flow: See Table
    Usage temperature: -15 ° +60 °
    Outlet Connection: G.3/8" Left
    Hose Holder for 6,3 mm
    Manometers ISO 5171 diam. 63 mm class 2.5
    Brass Body -CW617N-UNI EN 12165
    High Pressure Valve PVDF
    Zama 5 Bell
    Diaphragm EPDM diam.50
    Stainless Steel Filter placed inside the Reducer
    Nb. We recommend the use of safety valve for Combustion Gas
    Options
    Gas: Acetylene - LPG
    Outlet pressure: Acetylene 1,5bar - LPG 4 bar
