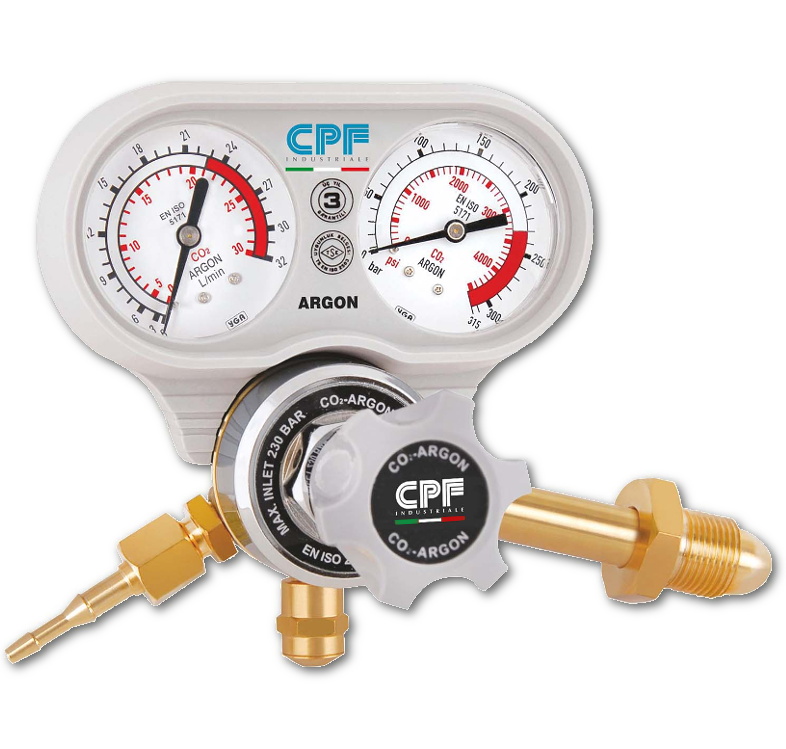

    Pressure regulators Argon and CO2 - Starreg

    Single-stage regulator with front adjustment knob and left-side inlet for Argon and CO2, equipped with a flow gauge. Ideal for MIG/MAG and TIG welding, it ensures a constant flow of shielding gas. The flow gauge combines a… See more...
    Request informations
    Standard Specifications
    Construction regulations: EN ISO 2503
    Input Pressure: 230 Bar Max
    Output pressure: Adjustable 0/21 LT./min
    Flow: See Table
    Usage temperature: -15 ° +60 °
    Outlet Connection: G.1/4"
    Hose holder diameter 6,3 mm
    Manometers ISO 5171 diam. 63 mm class 2.5
    HP Pressure Gauge 0/315 bar
    Handflowmeter full scale 0/30 LT./min
    Brass Body -CW617N-UNI EN 12165
    High Pressure Valve Valve PVDF Valve
    Zama 5 Bell
    Diaphragm NBR diam.50
    Stainless Steel Filter placed inside the Reducer
    Options
    Available gas: Argon / CO2
    Available on request NF/DIN
