    2589

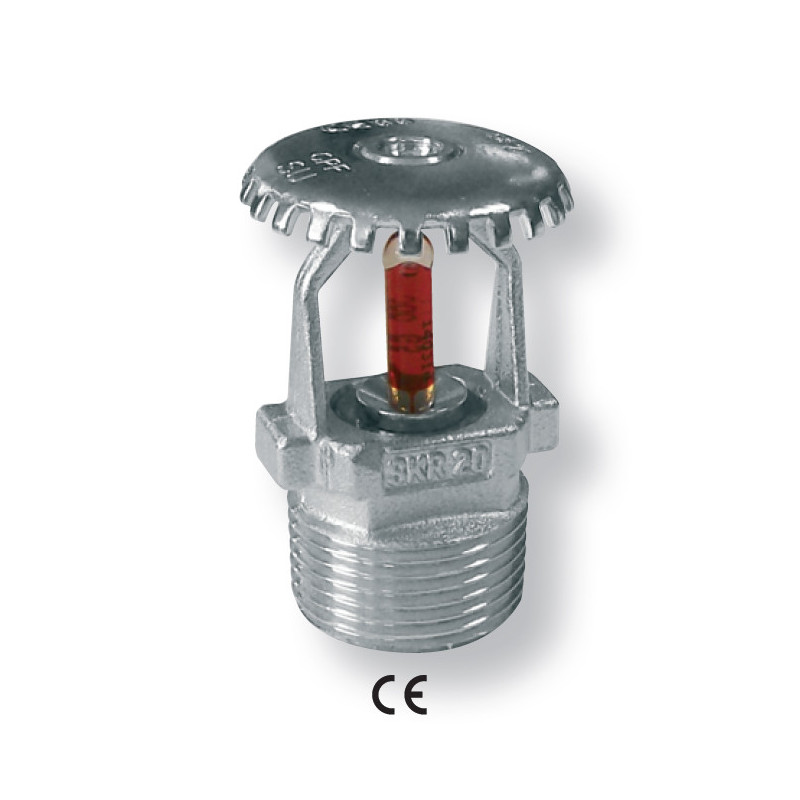

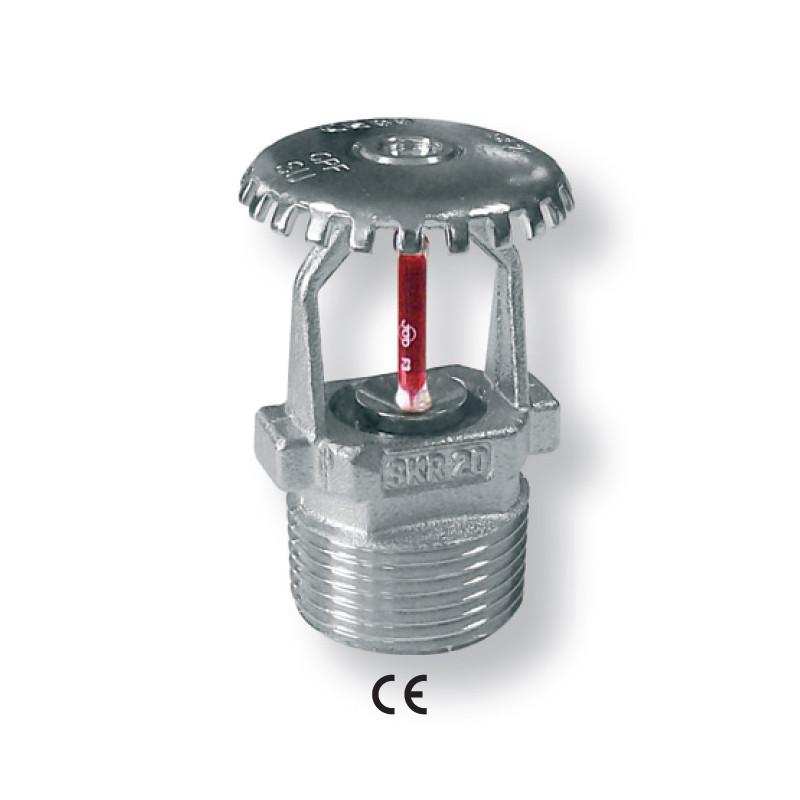

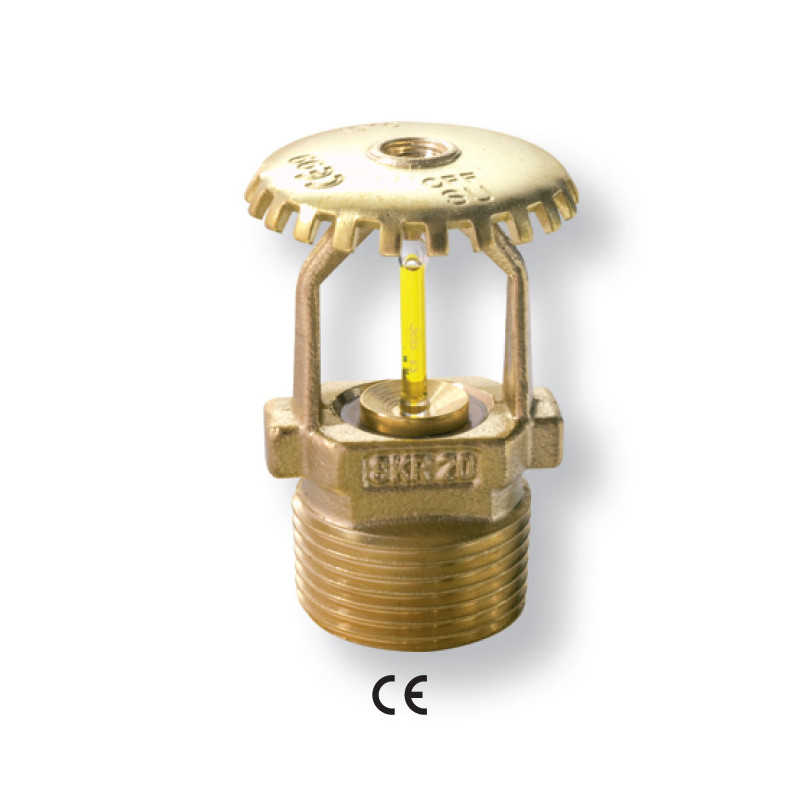

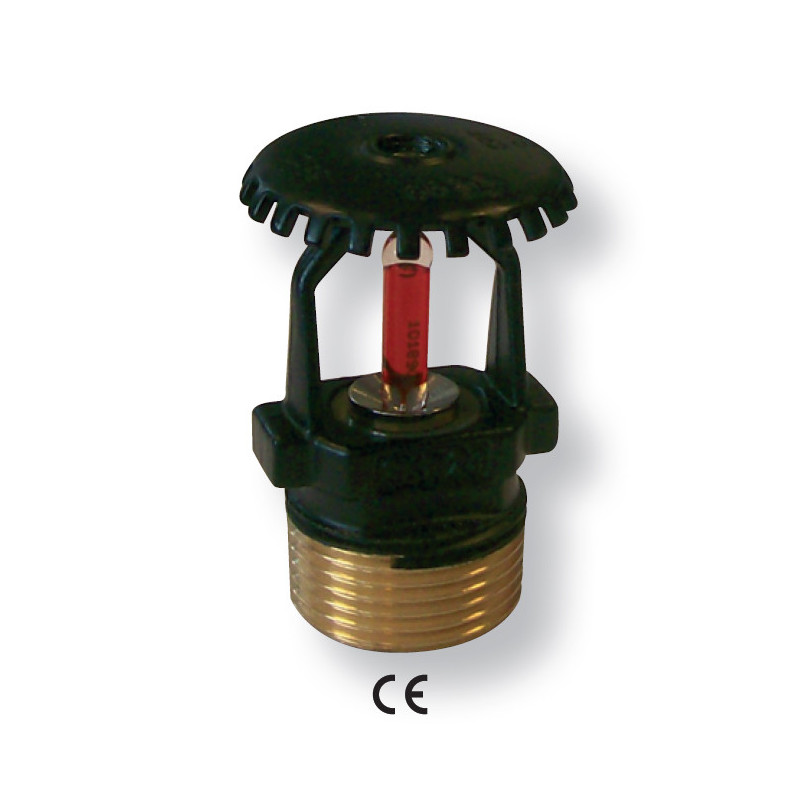

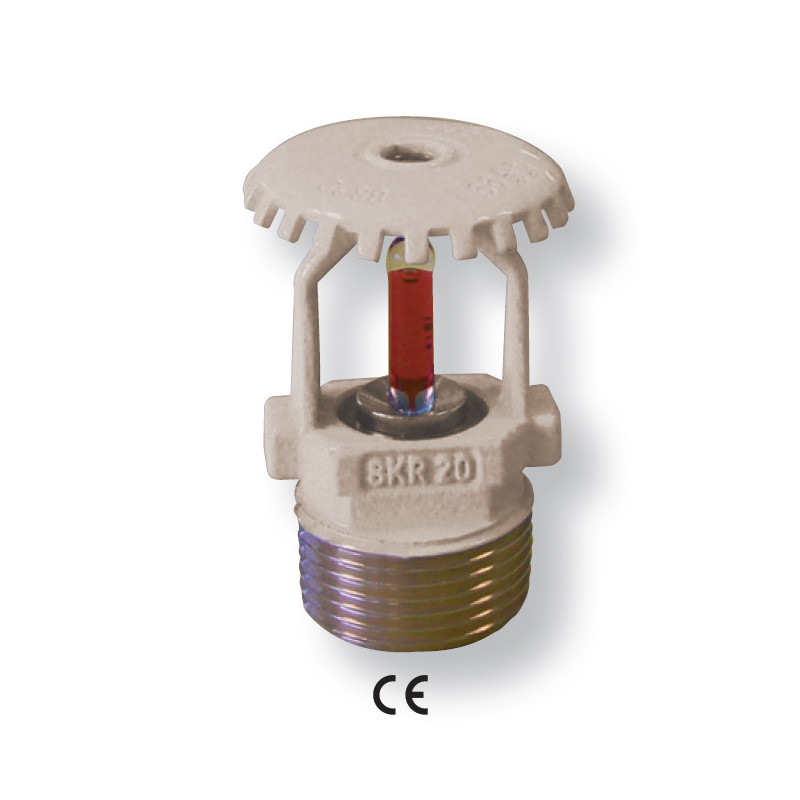

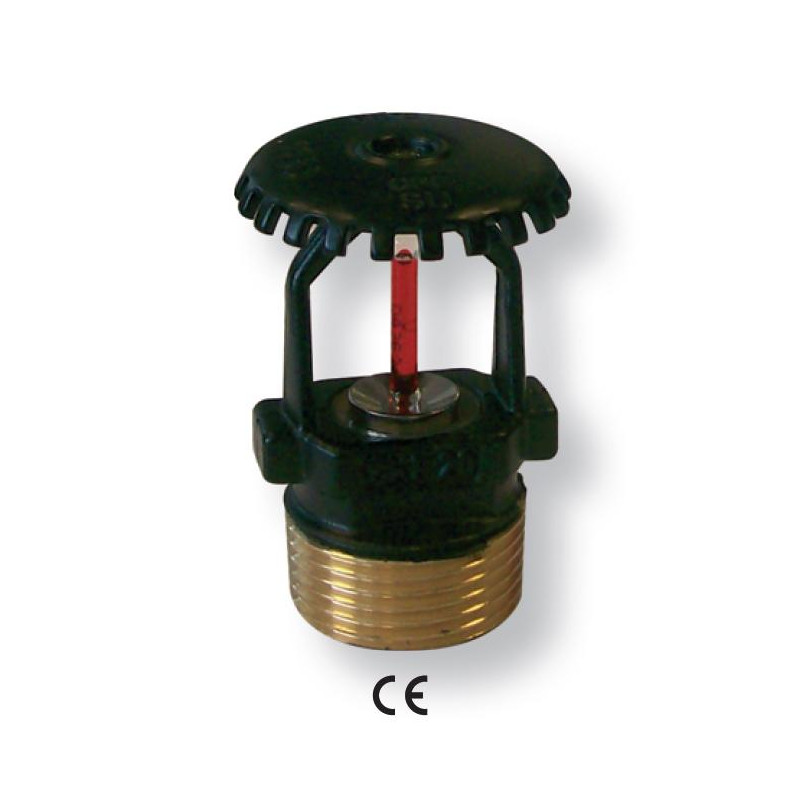

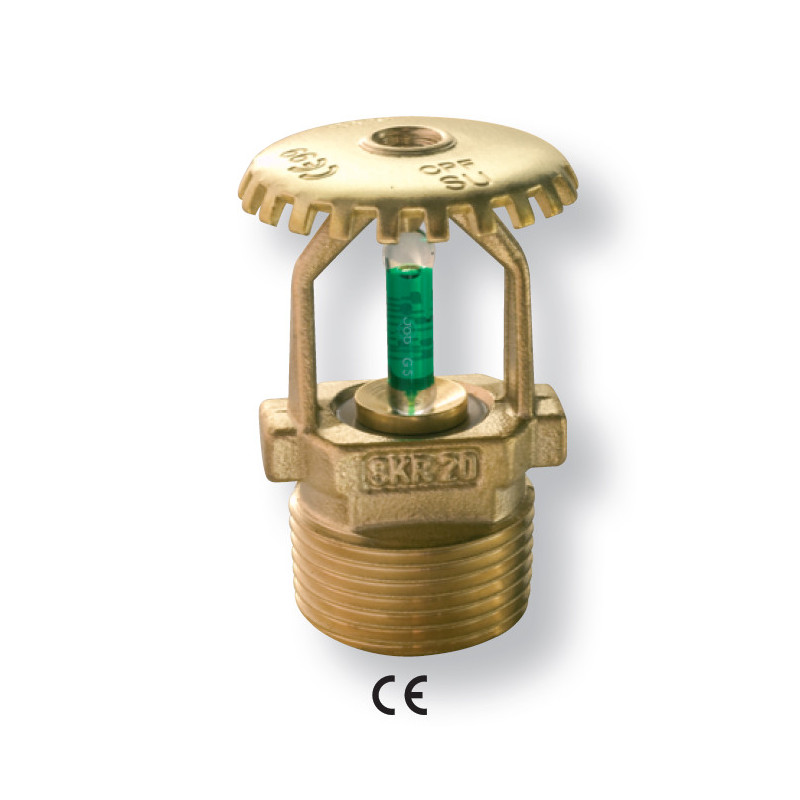

    Sprinkler Upright

    SPRINKLER UPRIGHT - 2011/305/UE (CPR) - UNI EN 12259-1 con distribuzione paraboloide dell’acqua "a ombrello", adatto a dare l’erogazione prevista quando il getto viene diretto in alto contro la rondella deflettrice… Vedi di più...
    Richiedi Informazioni
    Opzioni
    Attacco: 1/2" (K80) - 3/4" (K115)
    Risposta: G5 (risposta standard) - F3 (risposta rapida)
    Finitura: Grezzo - Cromato - Verniciato Bianco - Verniciato Nero
    Temperatura di Intervento: Clicca qui
    Disponibili anche privi di bulbo
    Downloads
    Per visualizzare il video, è necessario accettare la nostra Cookie Policy. Se il player non appare, clicca sul link qui sotto.

    Code Inlet Finishing Color K Factor Operating Temperature Response
    6320900220 1/2" Brass 80 57 °C = 135 °F Fast Response (F3)
    6320900221 1/2" Brass 80 68 °C = 155 °F Fast Response (F3)
    6320900222 1/2" Brass 80 79 °C = 175 °F Fast Response (F3)
    6320900223 1/2" Brass 80 93 °C = 200 °F Fast Response (F3)
    6320900224 1/2" Brass 80 141 °C = 286 °F Fast Response (F3)
    6320900250 1/2" Brass 80 57 °C = 135 °F Standard Response (G5)
    6320900251 1/2" Brass 80 68 °C = 155 °F Standard Response (G5)
    6320900252 1/2" Brass 80 79 °C = 175 °F Standard Response (G5)
    6320900253 1/2" Brass 80 93 °C = 200 °F Standard Response (G5)
    6320900254 1/2" Brass 80 141 °C = 286 °F Standard Response (G5)
    6320900255 1/2" Brass 80 182 °C = 360 °F Standard Response (G5)
    6320900271 3/4" Brass 115 57 °C = 135 °F Standard Response (G5)
    6320900272 3/4" Brass 115 68 °C = 155 °F Standard Response (G5)
    6320900273 3/4" Brass 115 79 °C = 175 °F Standard Response (G5)
    6320900274 3/4" Brass 115 93 °C = 200 °F Standard Response (G5)
    6320900275 3/4" Brass 115 141 °C = 286 °F Standard Response (G5)
    6320900276 3/4" Brass 115 182 °C = 360 °F Standard Response (G5)
    6320900277 3/4" Brass 115 57 °C = 135 °F Fast Response (F3)
    6320900278 3/4" Brass 115 68 °C = 155 °F Fast Response (F3)
    6320900279 3/4" Brass 115 79 °C = 175 °F Fast Response (F3)
    6320900280 3/4" Brass 115 93 °C = 200 °F Fast Response (F3)
    6320900292 3/4" Brass 115 141 °C = 286 °F Fast Response (F3)
    6320900351 1/2" Brass 80
    6320900372 3/4" Brass 115
    63B0900271 3/4" Painted White 115 57 °C = 135 °F Standard Response (G5)
    63B0900272 3/4" Painted White 115 68 °C = 155 °F Standard Response (G5)
    63B0900273 3/4" Painted White 115 79 °C = 175 °F Standard Response (G5)
    63B0900274 3/4" Painted White 115 93 °C = 200 °F Standard Response (G5)
    63B0900275 3/4" Painted White 115 141 °C = 286 °F Standard Response (G5)
    63B0900276 3/4" Painted White 115 182 °C = 360 °F Standard Response (G5)
    63B0900277 3/4" Painted White 115 57 °C = 135 °F Fast Response (F3)
    63B0900278 3/4" Painted White 115 68 °C = 155 °F Fast Response (F3)
    63B0900279 3/4" Painted White 115 79 °C = 175 °F Fast Response (F3)
    63B0900280 3/4" Painted White 115 93 °C = 200 °F Fast Response (F3)
    63B0900292 3/4" Painted White 115 141 °C = 286 °F Fast Response (F3)
    63B0900420 1/2" Painted White 80 57 °C = 135 °F Fast Response (F3)
    63B0900421 1/2" Painted White 80 68 °C = 155 °F Fast Response (F3)
    63B0900422 1/2" Painted White 80 79 °C = 175 °F Fast Response (F3)
    63B0900423 1/2" Painted White 80 93 °C = 200 °F Fast Response (F3)
    63B0900424 1/2" Painted White 80 141 °C = 286 °F Fast Response (F3)
    63B0900450 1/2" Painted White 80 57 °C = 135 °F Standard Response (G5)
    63B0900451 1/2" Painted White 80 68 °C = 155 °F Standard Response (G5)
    63B0900452 1/2" Painted White 80 79 °C = 175 °F Standard Response (G5)
    63B0900453 1/2" Painted White 80 93 °C = 200 °F Standard Response (G5)
    63B0900454 1/2" Painted White 80 141 °C = 286 °F Standard Response (G5)
    63B0900455 1/2" Painted White 80 182 °C = 360 °F Standard Response (G5)
    63C0900220 1/2" Chrome-plated 80 57 °C = 135 °F Fast Response (F3)
    63C0900221 1/2" Chrome-plated 80 68 °C = 155 °F Fast Response (F3)
    63C0900222 1/2" Chrome-plated 80 79 °C = 175 °F Fast Response (F3)
    63C0900223 1/2" Chrome-plated 80 93 °C = 200 °F Fast Response (F3)
    63C0900224 1/2" Chrome-plated 80 141 °C = 286 °F Fast Response (F3)
    63C0900250 1/2" Chrome-plated 80 57 °C = 135 °F Standard Response (G5)
    63C0900251 1/2" Chrome-plated 80 68 °C = 155 °F Standard Response (G5)
    63C0900252 1/2" Chrome-plated 80 79 °C = 175 °F Standard Response (G5)
    63C0900253 1/2" Chrome-plated 80 93 °C = 200 °F Standard Response (G5)
    63C0900254 1/2" Chrome-plated 80 141 °C = 286 °F Standard Response (G5)
    63C0900255 1/2" Chrome-plated 80 182 °C = 360 °F Standard Response (G5)
    63C0900271 3/4" Chrome-plated 115 57 °C = 135 °F Standard Response (G5)
    63C0900272 3/4" Chrome-plated 115 68 °C = 155 °F Standard Response (G5)
    63C0900273 3/4" Chrome-plated 115 79 °C = 175 °F Standard Response (G5)
    63C0900274 3/4" Chrome-plated 115 93 °C = 200 °F Standard Response (G5)
    63C0900275 3/4" Chrome-plated 115 141 °C = 286 °F Standard Response (G5)
    63C0900276 3/4" Chrome-plated 115 182 °C = 360 °F Standard Response (G5)
    63C0900277 3/4" Chrome-plated 115 57 °C = 135 °F Fast Response (F3)
    63C0900278 3/4" Chrome-plated 115 68 °C = 155 °F Fast Response (F3)
    63C0900279 3/4" Chrome-plated 115 79 °C = 175 °F Fast Response (F3)
    63C0900280 3/4" Chrome-plated 115 93 °C = 200 °F Fast Response (F3)
    63C0900292 3/4" Chrome-plated 115 141 °C = 286 °F Fast Response (F3)
    63C0900351 1/2" Chrome-plated 80
    63C0900372 3/4" Chrome-plated 115
    63N0900271 3/4" Painted Black 115 57 °C = 135 °F Standard Response (G5)
    63N0900272 3/4" Painted Black 115 68 °C = 155 °F Standard Response (G5)
    63N0900273 3/4" Painted Black 115 79 °C = 175 °F Standard Response (G5)
    63N0900274 3/4" Painted Black 115 93 °C = 200 °F Standard Response (G5)
    63N0900275 3/4" Painted Black 115 141 °C = 286 °F Standard Response (G5)
    63N0900276 3/4" Painted Black 115 182 °C = 360 °F Standard Response (G5)
    63N0900277 3/4" Painted Black 115 57 °C = 135 °F Fast Response (F3)
    63N0900278 3/4" Painted Black 115 68 °C = 155 °F Fast Response (F3)
    63N0900279 3/4" Painted Black 115 79 °C = 175 °F Fast Response (F3)
    63N0900280 3/4" Painted Black 115 93 °C = 200 °F Fast Response (F3)
    63N0900292 3/4" Painted Black 115 141 °C = 286 °F Fast Response (F3)
    63N0900420 1/2" Painted Black 80 57 °C = 135 °F Fast Response (F3)
    63N0900421 1/2" Painted Black 80 68 °C = 155 °F Fast Response (F3)
    63N0900422 1/2" Painted Black 80 79 °C = 175 °F Fast Response (F3)
    63N0900423 1/2" Painted Black 80 93 °C = 200 °F Fast Response (F3)
    63N0900424 1/2" Painted Black 80 141 °C = 286 °F Fast Response (F3)
    63N0900450 1/2" Painted Black 80 57 °C = 135 °F Standard Response (G5)
    63N0900451 1/2" Painted Black 80 68 °C = 155 °F Standard Response (G5)
    63N0900452 1/2" Painted Black 80 79 °C = 175 °F Standard Response (G5)
    63N0900453 1/2" Painted Black 80 93 °C = 200 °F Standard Response (G5)
    63N0900454 1/2" Painted Black 80 141 °C = 286 °F Standard Response (G5)
    63N0900455 1/2" Painted Black 80 182 °C = 360 °F Standard Response (G5)
