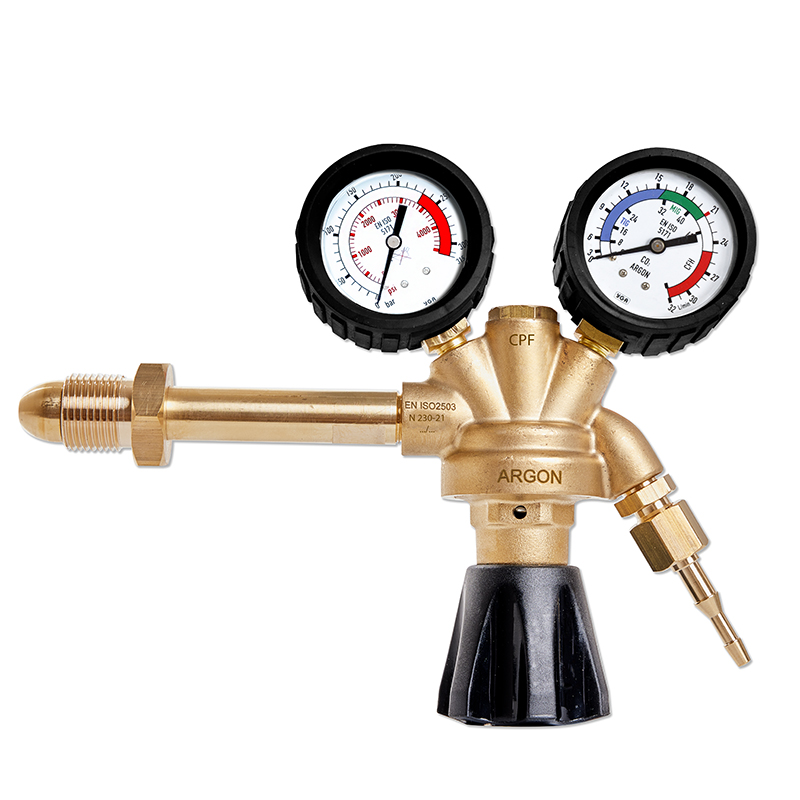

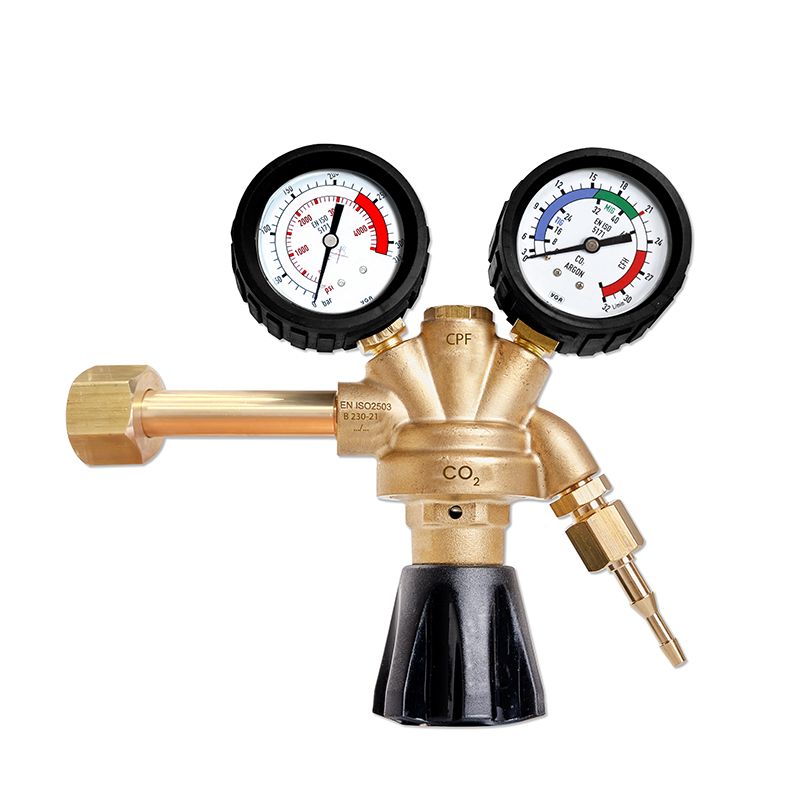

    Pressure regulators with flow control knob - Optireg

    The Optireg Series is the modern evolution of the Proreg line, now more compact and efficient than ever. With its clean design and robust construction, it ensures reliability, precision, and stability in professional applications… See more...
    Standard Specifications
    Construction regulations: EN ISO 2503
    Valve connection standard: UNI
    Input Pressure: 230 Bar Max
    Output pressure: Adjustable 0/10 Bar
    Range: See Table
    Usage temperature: -15 ° +60 °
    Hose holder diameter 6,3 mm
    Manometers ISO 5171 diam. 50 mm class 2.5
    HP Pressure Gauge 0/315 bar
    LP Pressure Gauge 0/15 bar
    Brass Body -CW617N-UNI EN 12165
    High Pressure Valve Valve PVDF Valve
    Brass Bell
    Diaphragm NBR diam.39
    Stainless Steel Filter placed inside the Reducer
    Options
    Available gas : Argon, CO2
    Available on request NF/DIN
