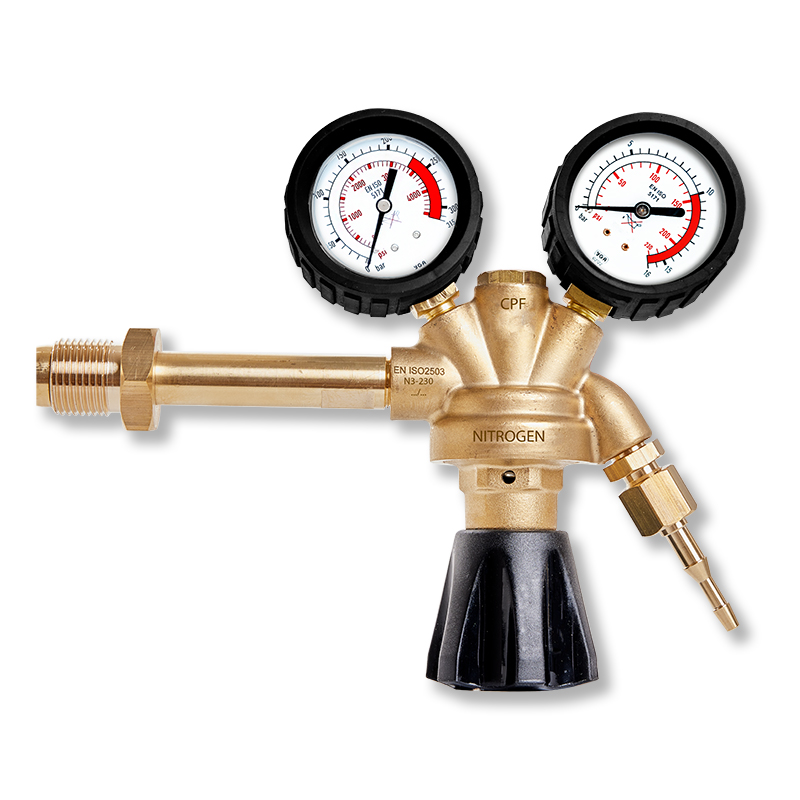

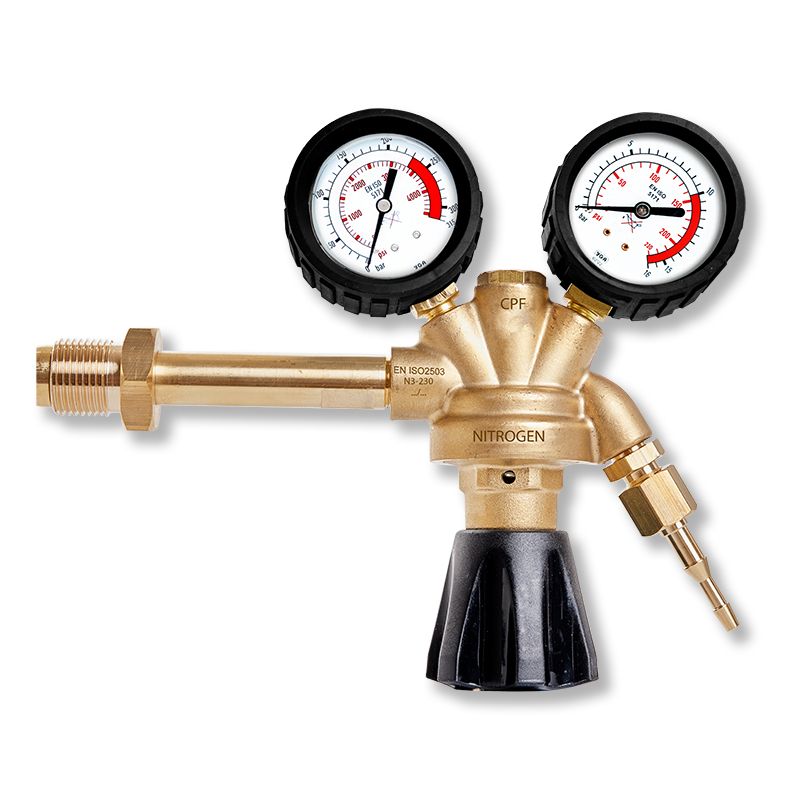

    Pressure regulators max outlet pressure 10 bar - Optireg

    The Optireg Series represents the new generation of pressure regulators, a direct evolution of the well-established Proreg line. Designed with a compact and modern layout, this regulator ensures reliability, precision, and stabil… See more...
    Standard Specifications
    Construction regulations: EN ISO 2503
    Valve connection standard: UNI
    Input Pressure: 230 Bar Max
    Output pressure: Adjustable 0/10 Bar
    Range: See Table
    Usage temperature: -15 ° +60 °
    Hose holder diameter 6,3 mm
    Manometers ISO 5171 diam. 50 mm class 2.5
    HP Pressure Gauge 0/315 bar
    LP Pressure Gauge 0/15 bar
    Brass Body -CW617N-UNI EN 12165
    High Pressure Valve Valve PVDF Valve
    Brass Bell
    Diaphragm NBR diam.39
    Stainless Steel Filter placed inside the Reducer
    Nb. We recommend the use of the Flash Back Arrestor for Oxygen
    Options

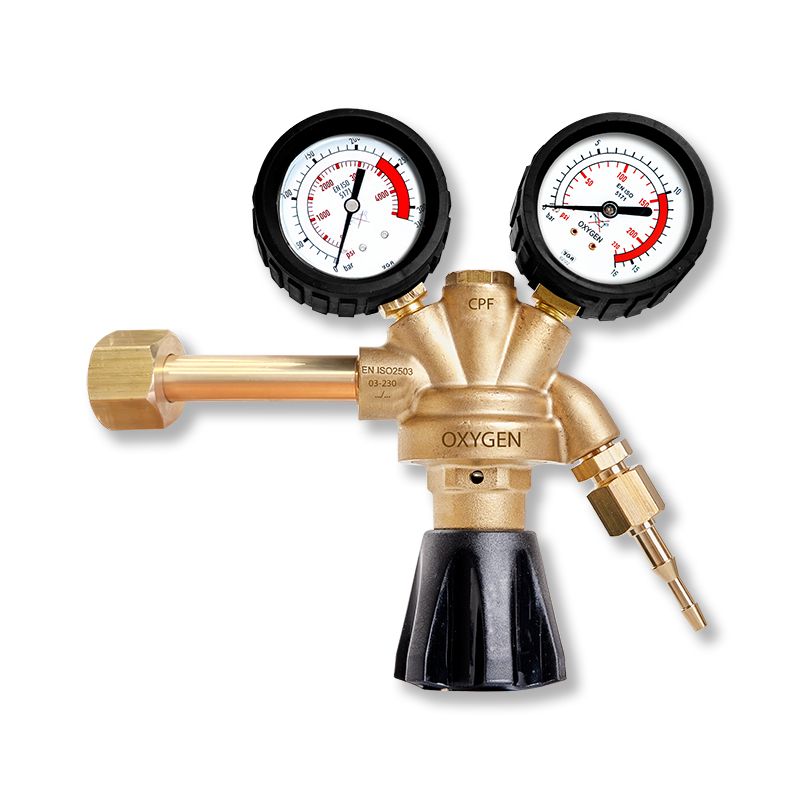

    Available gas : O2, N2
    Available on request NF/DIN
