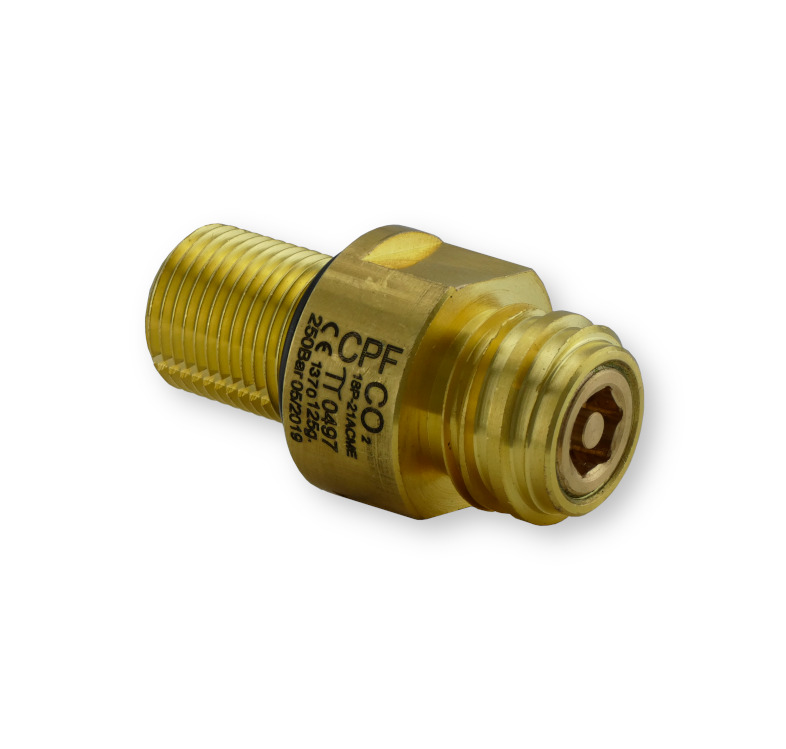

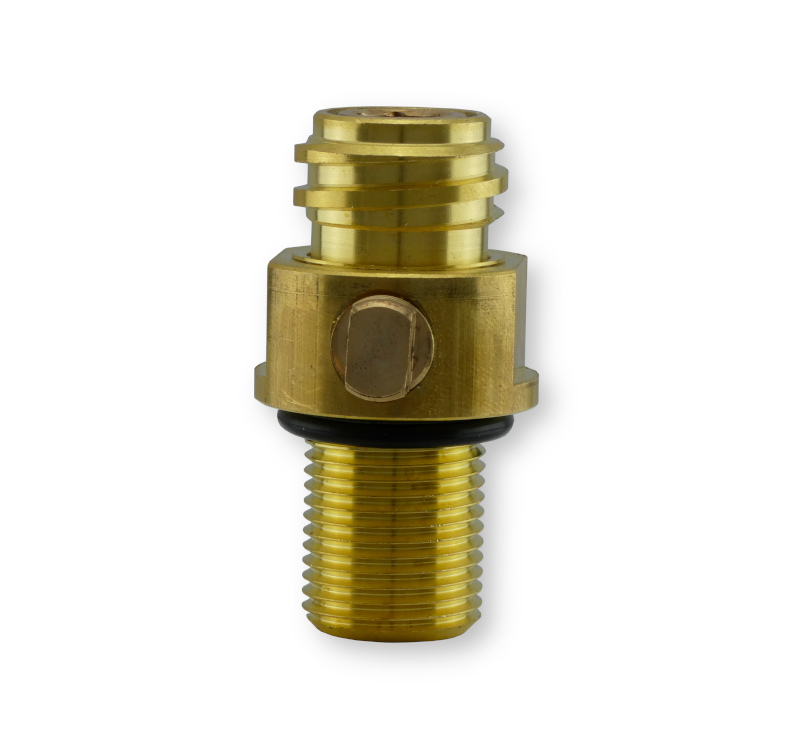

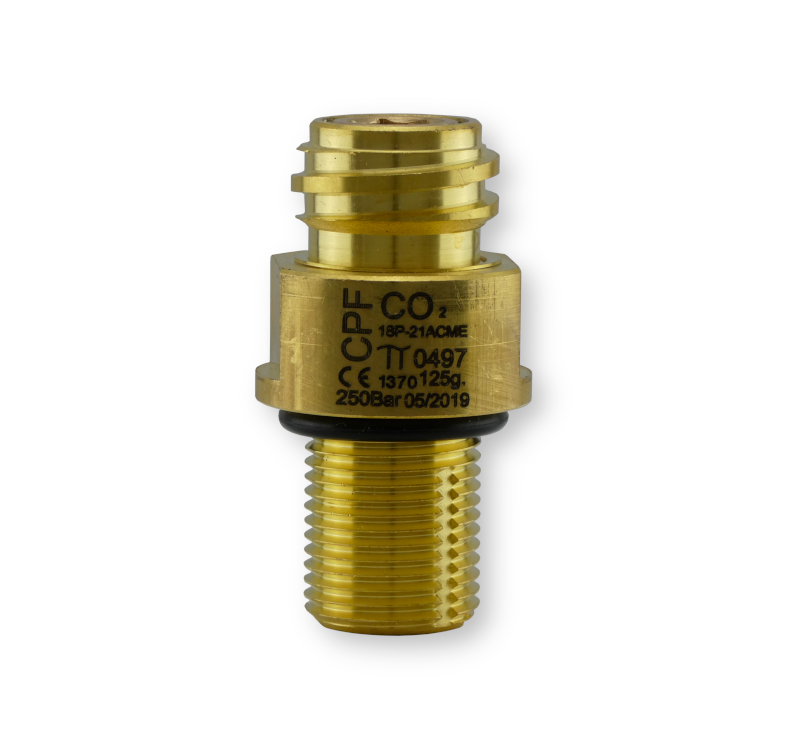

    water carbonation valve with inlet 18P

    The water carbonation valve is designed for controlling and regulating the flow of carbon dioxide (CO2) used in water carbonation. It ensures accurate mixing of the gas with water, providing effective and safe production of carbo… See more...
    Request informations
    Standard Specifications
    Working pressure PS max 250 bar
    Temperature range -35°c/+60°c
    Inlet connection UNI EN ISO 15245
    Outlet connection ACME 21-6
    Valve body CW617N brass according to UNI EN 12164
    O-rings EPDM (EP_851)
    Stainless Steel Spring (UNI EN 10088)
    Bursting disc Nickel (UNI EN 4126)
    Lubricant FLUORCARBON 885
    Singulary tested
    Package of 50 pieces
    Options

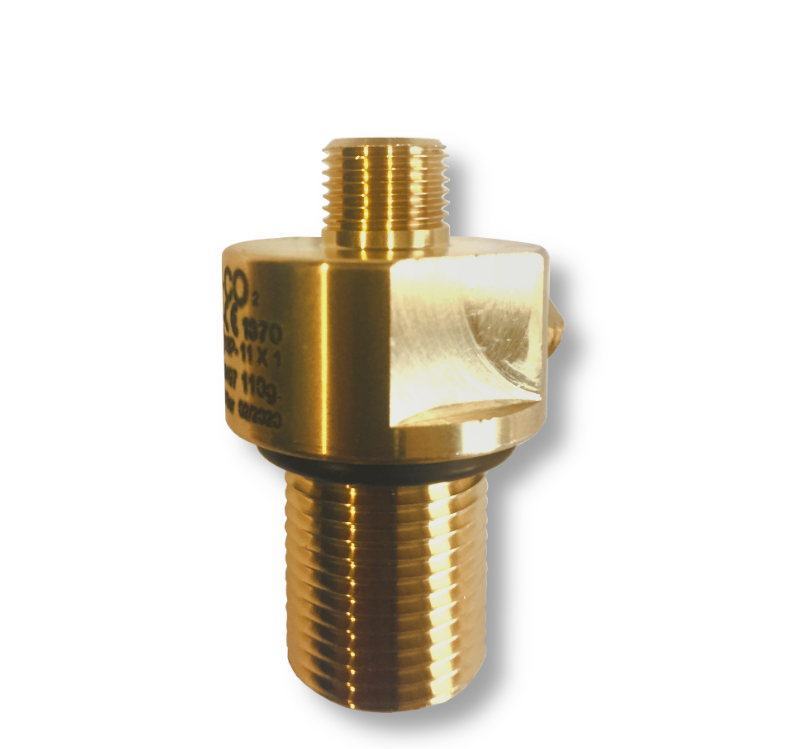

    Available model with M.11x1 outlet
    Downloads
    To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.

    Tabella Connessioni Bombole

    • Italia
    • Spagna
    • Francia
    • Gran Bretagna
    • Germania
    • USA

    Italia

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 W 21,7 x 1/14” UNI 11144 NR 2 B
    AZOTO N2 W 21,7 x 1/14” UNI 11144 NR 5 A
    ANIDRIDE CARBONICA CO2 W 21,7 x 1/14” UNI 11144 NR 2 B
    ARGON Ar W 24,5 x 1/14” UNI 11144 NR 8 A
    ELIO He W 24,5 x 1/14” UNI 11144 NR 8 A
    ARIA Air W 30 x 1/14” UNI 11144 NR 6 B
    PROTOSSIDO DI AZOTO N2O G 3/8” A UNI 11144 NR 9 B
    IDROGENO H2 W 20 x 1/14” LH UNI 11144 NR 1H B
    ACETILENE C2H2 Ø 20 x Ø 10 mm G 5/8” LH UNI 11144 NR 7S NF E 29-658 C/A
    G.P.L. C3H8 W 20 x1/14” LH UNI 11144 NR 1H B
    METANO CH2 W 20 x 1/14” LH UNI 11144 NR 1H B
    AMMONIACA NH3 W 30 x1/14” LH UNI 11144 NR 3 B

    Spagna

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 W 22,91 X 14 DERECHA (R5/8”) UNE TIPO F A
    AZOTO N2 M 21,7 X 1,814 DERECHA UNE TIPO C B
    ANIDRIDE CARBONICA CO2 M 21,7 X 1,814 DERECHA UNE TIPO C B
    ARGON Ar M 21,7 X 1,814 DERECHA UNE TIPO C B
    ELIO He M 21,7 X 1,814 DERECHA UNE TIPO C B
    ARIA Air M 30 X 1,75 DERECHA UNE TIPO B B
    PROTOSSIDO DI AZOTO N2O W16,66-1/19” (R3/8”) DERECHA UNE TIPO U A
    IDROGENO H2 M 21,7 X 1,814 IZQUIERDA UNE TIPO E B
    ACETILENE C2H2 W 22,91 - 14 LH (R5/8”) IZQUIERDA
    W26,44 - 14 (R3/4”) DERECHA    		 UNE TIPO H H
    G.P.L. C3H8 M 21,7 X 1,814 IZQUIERDA UNE TIPO E A
    METANO CH2 M 21,7 X 1,814 IZQUIERDA UNE TIPO E B
    AMMONIACA NH3


    Francia

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 Ø 22,91 X 1,814 NF E 29-650/B A
    AZOTO N2 Ø 21,7 X 1,814 NF E 29-650/C B
    ANIDRIDE CARBONICA CO2 Ø 21,7 X 1,814 NF E 29-650/C B
    ARGON Ar Ø 21,7 X 1,814 NF E 29-650/C B
    ELIO He Ø 21,7 X 1,814 NF E 29-650/C B
    ARIA Air Ø 30 X 1,75 NF E 29-650/C B
    PROTOSSIDO DI AZOTO N2O Ø 26 X1,5 NF E 29-650/G A
    IDROGENO H2 Ø 21,7 X 1,814 LH NF E 29-650/E B
    ACETILENE C2H2 Ø 21 X Ø 10 mm
    Ø 22,91 x 1,814LH    		 NF E 29-650/A
    NF E 29-650/H    		 C/A
    G.P.L. C3H8 Ø 21,7 X 1,814 LH NF E 29-650/E B
    METANO CH2 Ø 21,7 X 1,814 LH NF E 29-650/E B
    AMMONIACA NH3 Ø 21,7 X 1,814 NF E 29-650/C B

    Gran Bretagna

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 G 5/8” BS 341 nr.3 A
    AZOTO N2 G 5/8” BS 341 nr.3 A
    ANIDRIDE CARBONICA CO2 0,860” x 14 TPI BS 341 nr.8 B
    ARGON Ar G 5/8” BS 341 nr.3 A
    ELIO He G 5/8” BS 341 nr.3 A
    ARIA Air G 5/8” BS 341 nr.3 A
    PROTOSSIDO DI AZOTO N2O 11/16” X 20 TPI BS 341 nr.13 B
    IDROGENO H2 G 5/8” LH BS 341 nr.2 A
    ACETILENE C2H2 G 5/8” LH BS 341 nr.2 A
    G.P.L. C3H8 G 5/8” LH BS 341 nr.4 A
    METANO CH2 G 5/8” LH BS 341 nr.2 A
    AMMONIACA NH3 G 1/2"A BS 341 nr.10 B

    Germania

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 G 3/4” DIN 477 nr.9 A
    AZOTO N2 W 24,32 1/14” DIN 477 nr.10 B
    ANIDRIDE CARBONICA CO2 W 21,8 1/14” DIN 477 nr.6 B
    ARGON Ar W 21,8 1/14” DIN 477 nr.6 B
    ELIO He W 21,8 1/14” DIN 477 nr.6 B
    ARIA Air G 5/8" DIN 477 nr.13 A
    PROTOSSIDO DI AZOTO N2O G 3/4” DIN 477 nr.11 B
    IDROGENO H2 W 21,8 1/14” LH DIN 477 nr.1 B
    ACETILENE C2H2 Ø 15,3 X Ø 7,5 DIN 477 nr.3 A
    G.P.L. C3H8 W 21,8 1/14” LH DIN 477 nr.1 A
    METANO CH2 W 21,8 1/14” LH DIN 477 nr.1 B
    AMMONIACA NH3 W 21,8 1/14” DIN 477 nr.6 B

    USA

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 .903” 14 NGO RH EXT CGA 540 B
    AZOTO N2 .965” 14 NGO RH EXT CGA 580 A
    ANIDRIDE CARBONICA CO2 .825” 14 NGO RH EXT CGA 320 B
    ARGON Ar .965” 14 NGO RH EXT CGA 580 A
    ELIO He .965” 14 NGO RH EXT CGA 580 A
    ARIA Air .825” 14 NGO RH EXT CGA 346 B
    PROTOSSIDO DI AZOTO N2O .825” 14 NGO RH EXT CGA 326 B
    IDROGENO H2 .903” 14 NGO RH EXT CGA 540 B
    ACETILENE C2H2 .885” 14 NGO LH INT CGA 510 A
    G.P.L. C3H8 .885” 14 NGO LH INT CGA 510 A
    METANO CH2 .825” 14 NGO RH EXT CGA 320 B
    AMMONIACA NH3 3/8-18 NGT RH INT CGA 240 A
