    2379

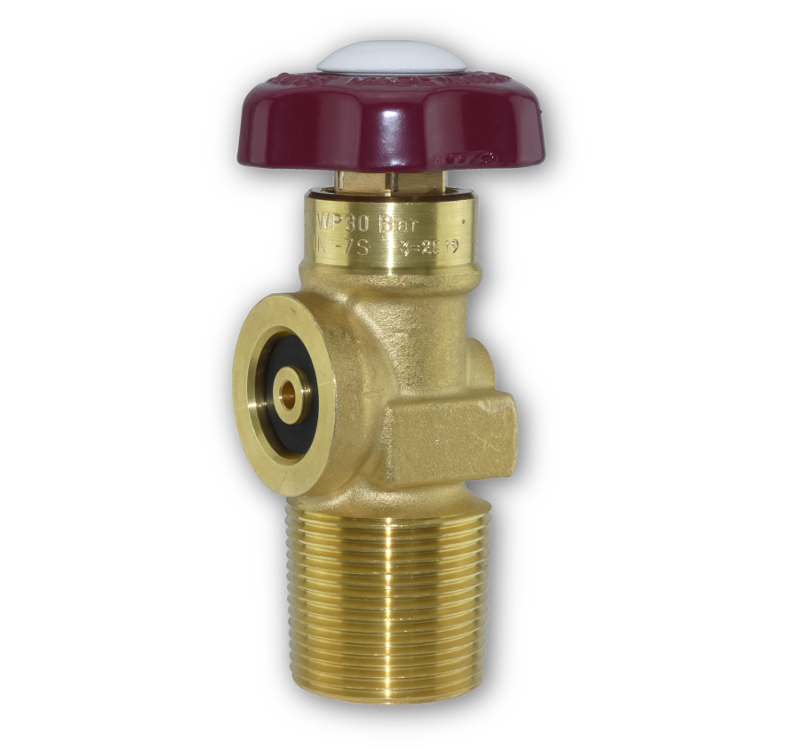

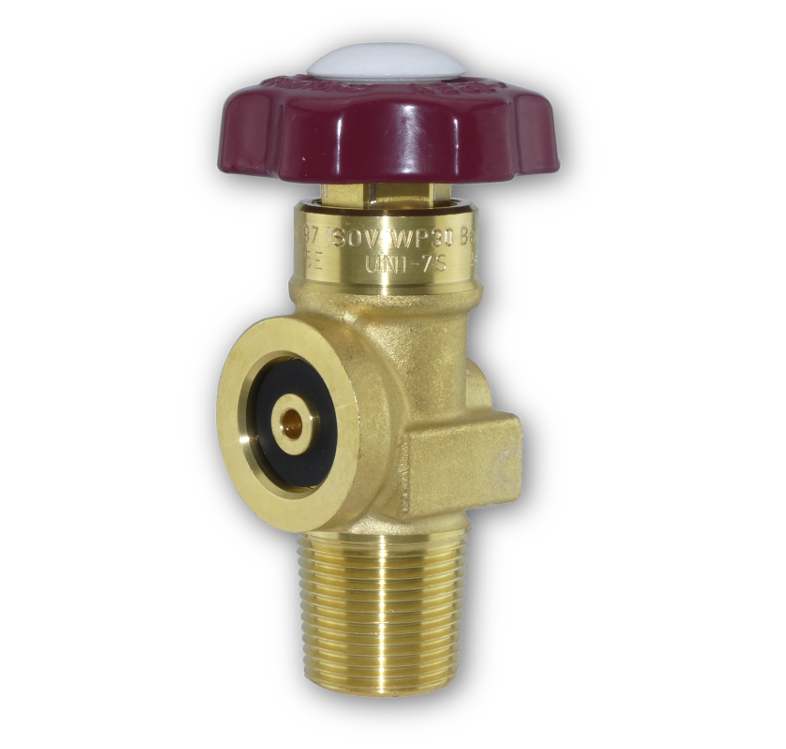

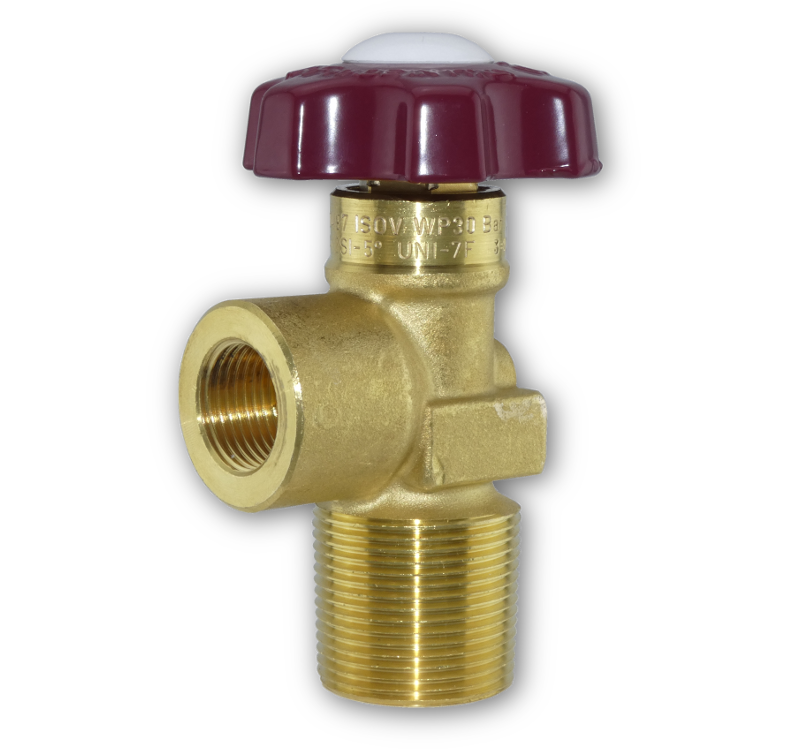

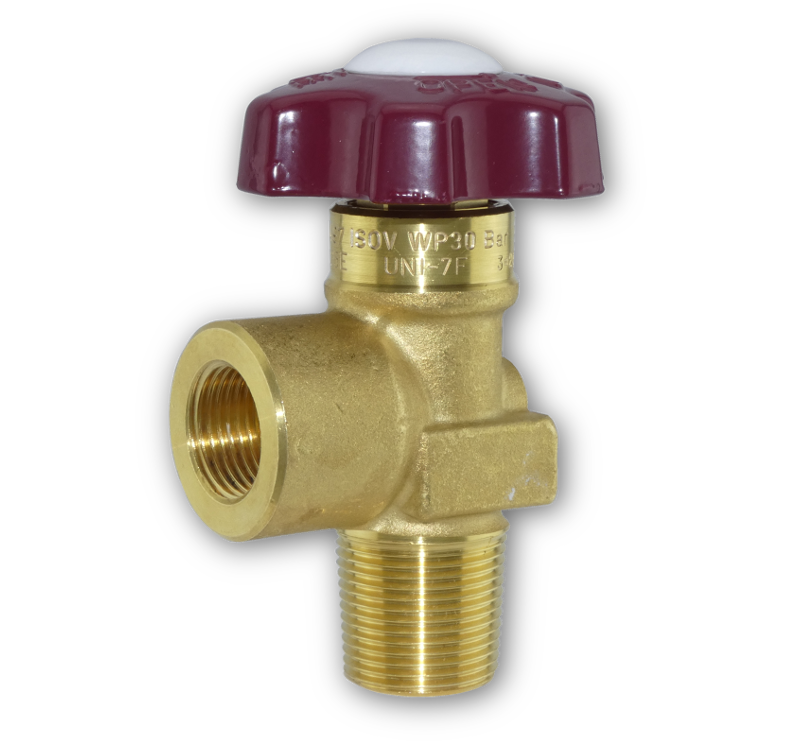

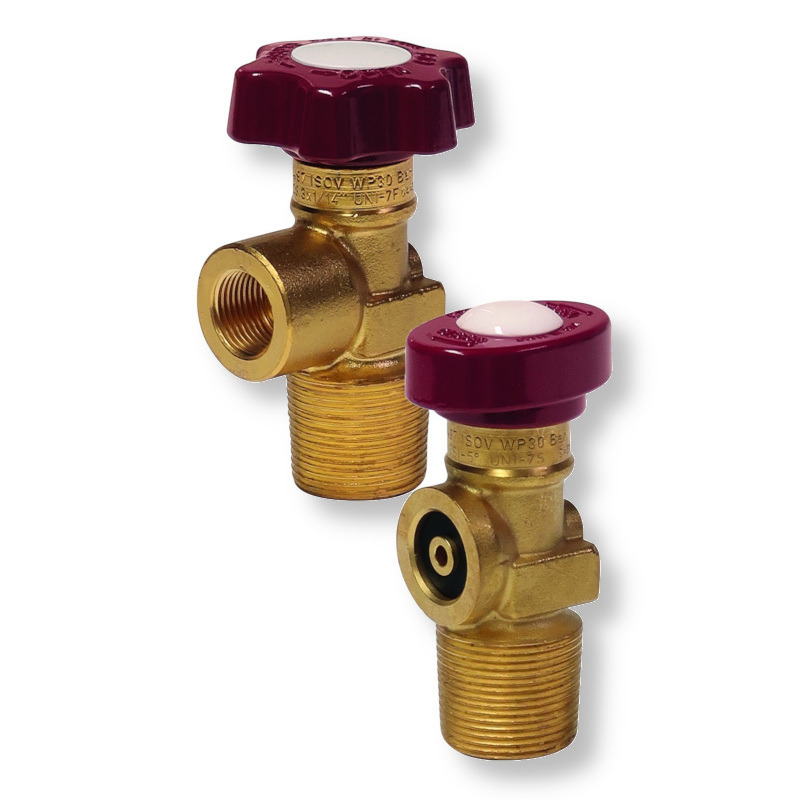

    Acetylene Standard Valve

    High pressure brass cylinder valve for acetylene. The valve is marked according to the 2010/35/EU directive. The handwheel valve for acetylene is designed for the safe control of gas in welding, cutting, and industrial processes. See more...
    Request informations
    Standard Specifications
    Working pressure: PS max 30 bar
    Temperature range: -35°c/+60°c
    Seat orifice: 4 mm
    Singulary tested
    Package of 25 pieces
    Options
    Inlet connection: 25E / M34x2 5° / W28.3x1/14
    Outlet connection: UNI 7F / UNI 7S / NF / DIN Nr.3
    Downloads
    To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.

    Tabella Connessioni Bombole

    • Italia
    • Spagna
    • Francia
    • Gran Bretagna
    • Germania
    • USA

    Italia

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 W 21,7 x 1/14” UNI 11144 NR 2 B
    AZOTO N2 W 21,7 x 1/14” UNI 11144 NR 5 A
    ANIDRIDE CARBONICA CO2 W 21,7 x 1/14” UNI 11144 NR 2 B
    ARGON Ar W 24,5 x 1/14” UNI 11144 NR 8 A
    ELIO He W 24,5 x 1/14” UNI 11144 NR 8 A
    ARIA Air W 30 x 1/14” UNI 11144 NR 6 B
    PROTOSSIDO DI AZOTO N2O G 3/8” A UNI 11144 NR 9 B
    IDROGENO H2 W 20 x 1/14” LH UNI 11144 NR 1H B
    ACETILENE C2H2 Ø 20 x Ø 10 mm G 5/8” LH UNI 11144 NR 7S NF E 29-658 C/A
    G.P.L. C3H8 W 20 x1/14” LH UNI 11144 NR 1H B
    METANO CH2 W 20 x 1/14” LH UNI 11144 NR 1H B
    AMMONIACA NH3 W 30 x1/14” LH UNI 11144 NR 3 B

    Spagna

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 W 22,91 X 14 DERECHA (R5/8”) UNE TIPO F A
    AZOTO N2 M 21,7 X 1,814 DERECHA UNE TIPO C B
    ANIDRIDE CARBONICA CO2 M 21,7 X 1,814 DERECHA UNE TIPO C B
    ARGON Ar M 21,7 X 1,814 DERECHA UNE TIPO C B
    ELIO He M 21,7 X 1,814 DERECHA UNE TIPO C B
    ARIA Air M 30 X 1,75 DERECHA UNE TIPO B B
    PROTOSSIDO DI AZOTO N2O W16,66-1/19” (R3/8”) DERECHA UNE TIPO U A
    IDROGENO H2 M 21,7 X 1,814 IZQUIERDA UNE TIPO E B
    ACETILENE C2H2 W 22,91 - 14 LH (R5/8”) IZQUIERDA
    W26,44 - 14 (R3/4”) DERECHA    		 UNE TIPO H H
    G.P.L. C3H8 M 21,7 X 1,814 IZQUIERDA UNE TIPO E A
    METANO CH2 M 21,7 X 1,814 IZQUIERDA UNE TIPO E B
    AMMONIACA NH3


    Francia

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 Ø 22,91 X 1,814 NF E 29-650/B A
    AZOTO N2 Ø 21,7 X 1,814 NF E 29-650/C B
    ANIDRIDE CARBONICA CO2 Ø 21,7 X 1,814 NF E 29-650/C B
    ARGON Ar Ø 21,7 X 1,814 NF E 29-650/C B
    ELIO He Ø 21,7 X 1,814 NF E 29-650/C B
    ARIA Air Ø 30 X 1,75 NF E 29-650/C B
    PROTOSSIDO DI AZOTO N2O Ø 26 X1,5 NF E 29-650/G A
    IDROGENO H2 Ø 21,7 X 1,814 LH NF E 29-650/E B
    ACETILENE C2H2 Ø 21 X Ø 10 mm
    Ø 22,91 x 1,814LH    		 NF E 29-650/A
    NF E 29-650/H    		 C/A
    G.P.L. C3H8 Ø 21,7 X 1,814 LH NF E 29-650/E B
    METANO CH2 Ø 21,7 X 1,814 LH NF E 29-650/E B
    AMMONIACA NH3 Ø 21,7 X 1,814 NF E 29-650/C B

    Gran Bretagna

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 G 5/8” BS 341 nr.3 A
    AZOTO N2 G 5/8” BS 341 nr.3 A
    ANIDRIDE CARBONICA CO2 0,860” x 14 TPI BS 341 nr.8 B
    ARGON Ar G 5/8” BS 341 nr.3 A
    ELIO He G 5/8” BS 341 nr.3 A
    ARIA Air G 5/8” BS 341 nr.3 A
    PROTOSSIDO DI AZOTO N2O 11/16” X 20 TPI BS 341 nr.13 B
    IDROGENO H2 G 5/8” LH BS 341 nr.2 A
    ACETILENE C2H2 G 5/8” LH BS 341 nr.2 A
    G.P.L. C3H8 G 5/8” LH BS 341 nr.4 A
    METANO CH2 G 5/8” LH BS 341 nr.2 A
    AMMONIACA NH3 G 1/2"A BS 341 nr.10 B

    Germania

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 G 3/4” DIN 477 nr.9 A
    AZOTO N2 W 24,32 1/14” DIN 477 nr.10 B
    ANIDRIDE CARBONICA CO2 W 21,8 1/14” DIN 477 nr.6 B
    ARGON Ar W 21,8 1/14” DIN 477 nr.6 B
    ELIO He W 21,8 1/14” DIN 477 nr.6 B
    ARIA Air G 5/8" DIN 477 nr.13 A
    PROTOSSIDO DI AZOTO N2O G 3/4” DIN 477 nr.11 B
    IDROGENO H2 W 21,8 1/14” LH DIN 477 nr.1 B
    ACETILENE C2H2 Ø 15,3 X Ø 7,5 DIN 477 nr.3 A
    G.P.L. C3H8 W 21,8 1/14” LH DIN 477 nr.1 A
    METANO CH2 W 21,8 1/14” LH DIN 477 nr.1 B
    AMMONIACA NH3 W 21,8 1/14” DIN 477 nr.6 B

    USA

    Gas Simboli Dimensione Rif. Norma Tipo
    OSSIGENO O2 .903” 14 NGO RH EXT CGA 540 B
    AZOTO N2 .965” 14 NGO RH EXT CGA 580 A
    ANIDRIDE CARBONICA CO2 .825” 14 NGO RH EXT CGA 320 B
    ARGON Ar .965” 14 NGO RH EXT CGA 580 A
    ELIO He .965” 14 NGO RH EXT CGA 580 A
    ARIA Air .825” 14 NGO RH EXT CGA 346 B
    PROTOSSIDO DI AZOTO N2O .825” 14 NGO RH EXT CGA 326 B
    IDROGENO H2 .903” 14 NGO RH EXT CGA 540 B
    ACETILENE C2H2 .885” 14 NGO LH INT CGA 510 A
    G.P.L. C3H8 .885” 14 NGO LH INT CGA 510 A
    METANO CH2 .825” 14 NGO RH EXT CGA 320 B
    AMMONIACA NH3 3/8-18 NGT RH INT CGA 240 A
